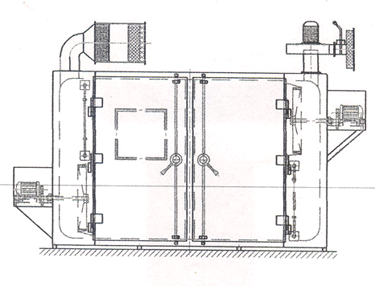

Air Tray Dryer




RANGE : FROM 6 TRAYS TO 192 TRAYS.


WORKING TEMPERATURE UPTO 250.

MOC. – S.S.304, S.S.316, HASTEALLOY C / HALAR

MANUFACTURED AS PER CGMP NORMS.

STANDARD TRAY SIZE IS 32’’ LENGTH * 16’’ WIDTH * 1 ¼’’ depth


EACH TRAY CAN HOLD APPROXIMATELY 4 KGS. OF MATERIAL
( ASSUMED B.D. = 0.5GM. / CC. )





OMEGA MERITS :


  • UNIFORMITY OF DRYING TEMPERATURE AT EVERY POINT WITHIN THE CHAMBER.
  • EASY FOR CLEANING VALIDATION DUE TO ABSENCE OF ROUGH EDGES. CREVICES AND SHARP CORNERS IN THE CHAMBER. MOREOVER, ALL THE INTERNAL COMPONENTS WITHIN THE DRYER CAN BE REMOVED EASILY FOR CLEANING AND THEN RE – ASSEMBLED WITHIN A SHORT PERIOD.
  • UNIQUE DESIGN DOES NOT ALLOW DEPOSITION OF DUSTS ON SAFETY GRIDS.
  • UNIFORMITY OF AIR – FLOW AND EFFICIENCY OF RE – CIRCULATION FAN IS MUCH HIGHER DUE TO CONICAL SHAPE OF FAN FARING.
  • ALL JOINTS OF TROLLEY ARE FUIIY WELDED.
  • DOOR HAS STURDY HINGES, SPARKLESS LOCKING AND SUITABLE GASKET FOR AIR TIGHT OPERATION.
  • OPTION OF VERTICAL TRAY DRYER WITH HEATING AND AIR CIRCULATION SYSTEM OUTSIDE THE DRYING CHAMBER IN SERVICE AREA.
  • OPTION OF HEPA FILTERS AND PLC CONTROL.

DQ / IQ / OQ / PQ DOCUMENTATION PROVIDED.
